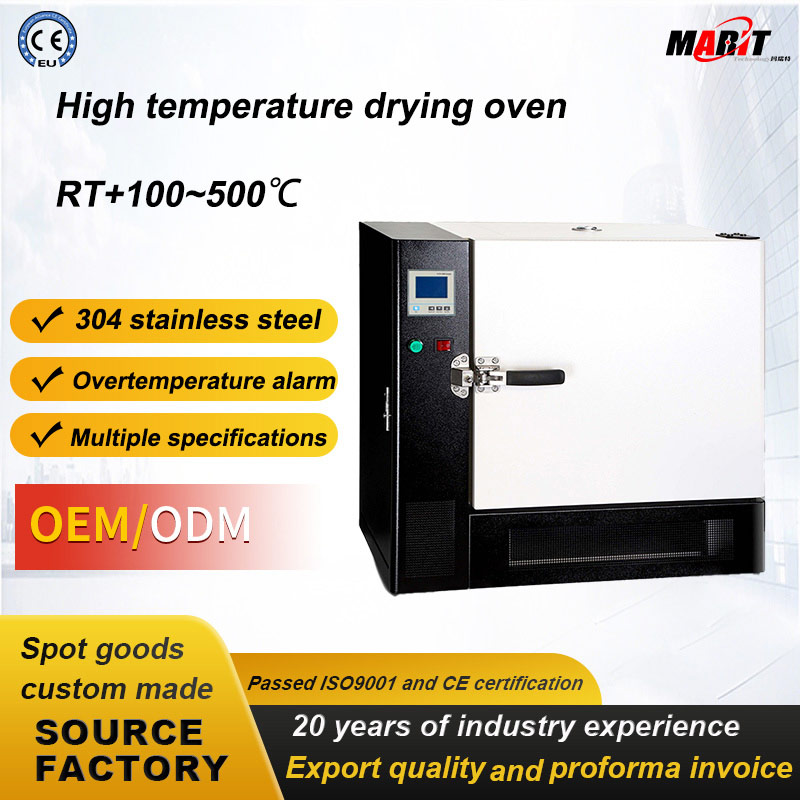

High temperature hot air drying oven500℃ industrial dry oven for Laboratory sterilization
Products produced by large laser cutting processing equipment; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research units, etc.
Product Details

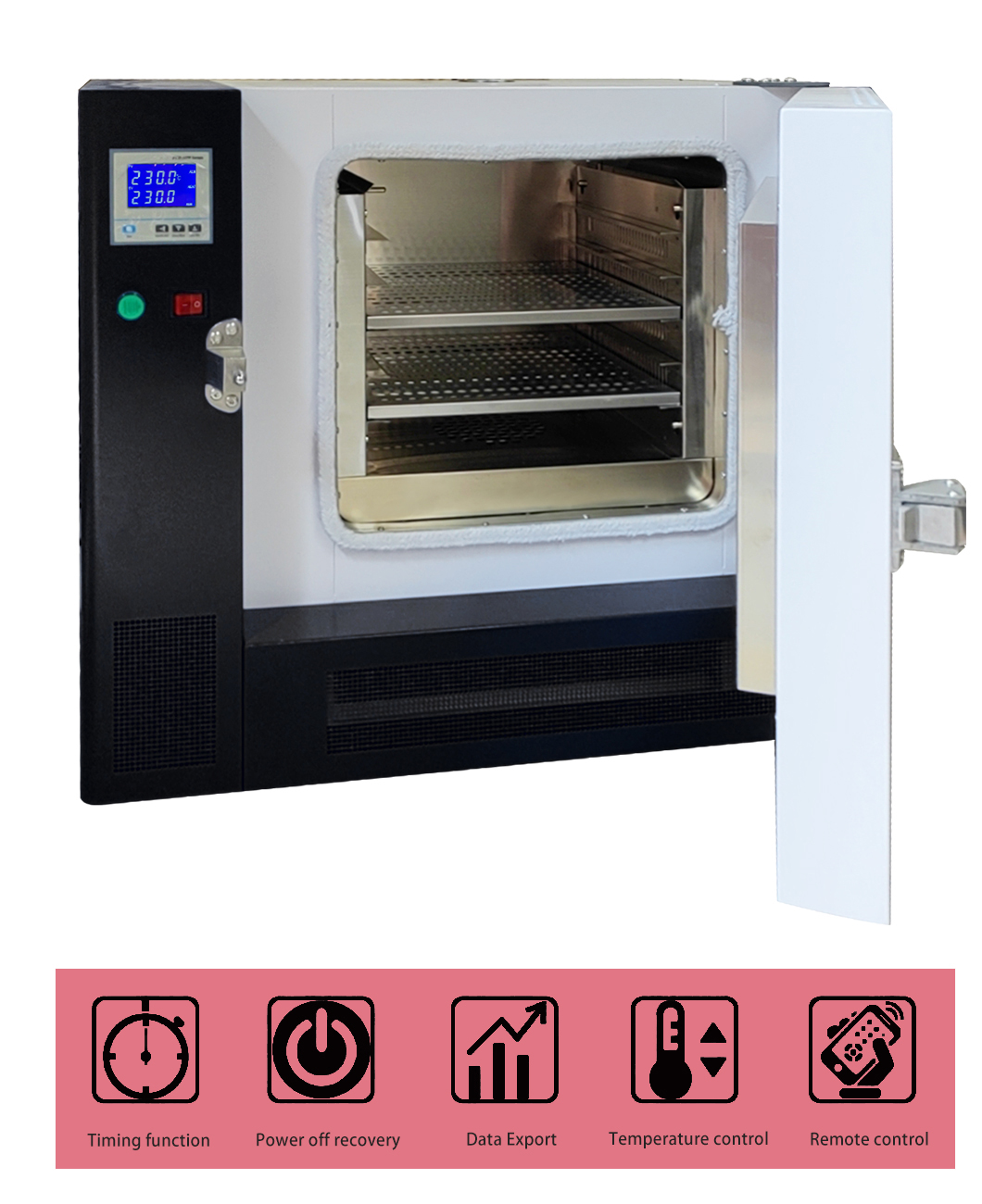

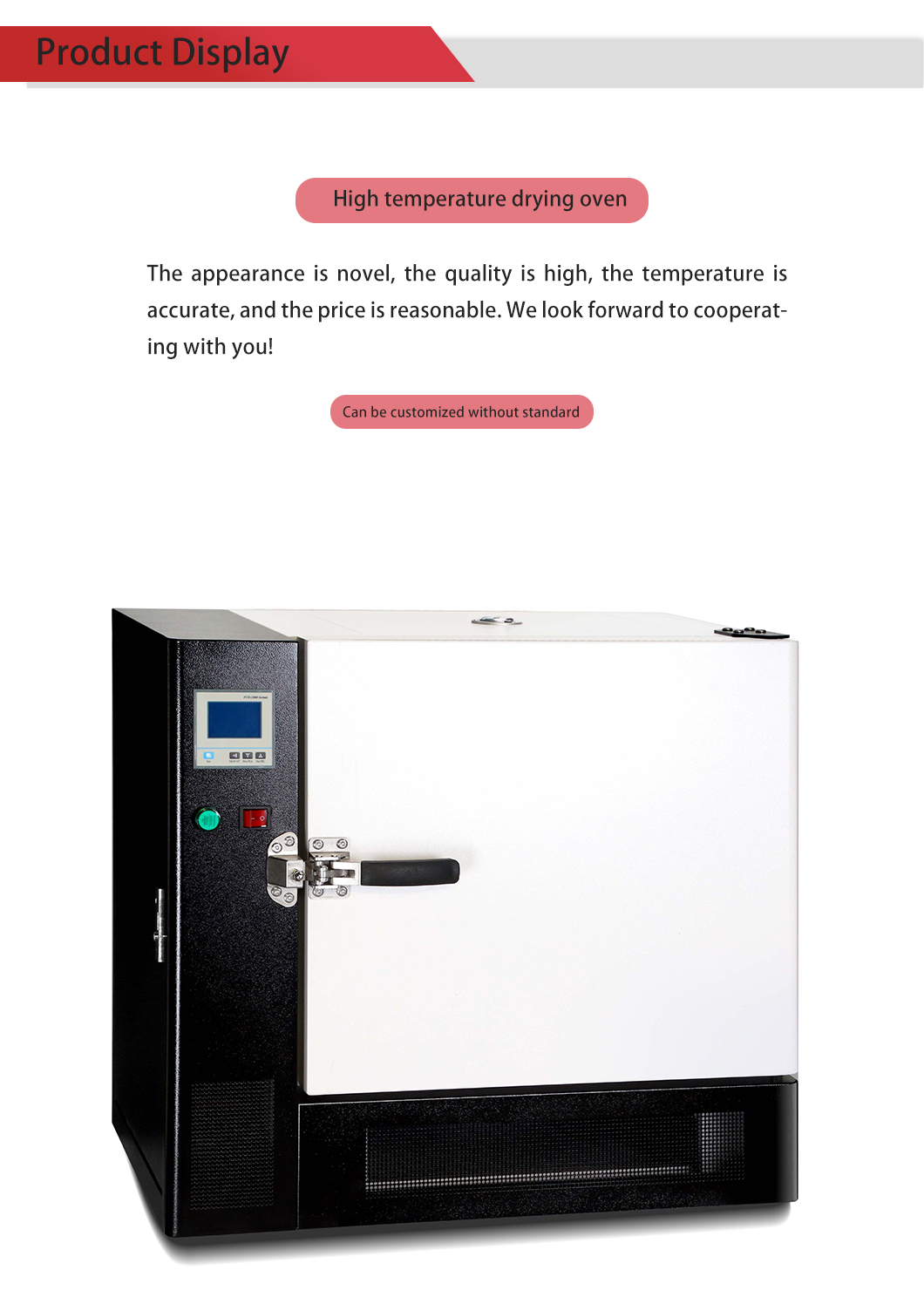

Desktop blower drying box, also known as (desktop blower oven), is a product produced by large-scale laser cutting and processing equipment; it is used for drying, baking wax and sterilization by industrial and mining enterprises, laboratories, scientific research units, etc.
2. Instrument selling points:
1. The inner tank is made of mirror stainless steel.
2. Intelligent controller with good temperature control effect.
3. Digital one - screen display for parameters such as temperature and time.
4. Manufactured by an honest enterprise, the product is durable and all parameters are presented without reservation.
5. After - sales service is guaranteed, and there are after - sales services all over the country.
6. Video teaching is provided to reduce the time users spend reading the instruction manual.
3. Unique advantages of the product:
Partition upgrade: (The partition is made of stainless steel steel plate punched, which can solve the unevenness of the grid when placing items in the past)
Left side of the controller: (The controller is on the left side, which is convenient for operation)
Improved air duct structure: (Redesigned strong convection air duct to significantly improve uniformity)
Door handle upgrade: (Upgradeable door handle, simple, light and durable opening and closing door)
Partition upgrade: (First use a number of partition strips to weld inside the inner liner, put the partition plate and box drawer-type pulling, the I-type drying box is hook-type not to pull)
Appearance upgrade: (The overall performance of the equipment is improved, and the appearance is upgraded with exquisite and atmospheric.)
Fan speed regulation function: (can adjust the wind speed)
Programmable controller: (Standard equipped with 9999 cycles, 50-segment programming)
4. Humanized design:
The streamlined and luxurious overall machine shape is full of aesthetic design concepts. The box body is electrostatically sprayed, and there is a large - angle tempered glass observation window on the door.
It is made by mirror - finished stainless - steel argon arc welding. The outer box is made of high - quality steel plates, with a beautiful and novel appearance. The mirror - finished stainless - steel inner lining makes the instrument corrosion - resistant.

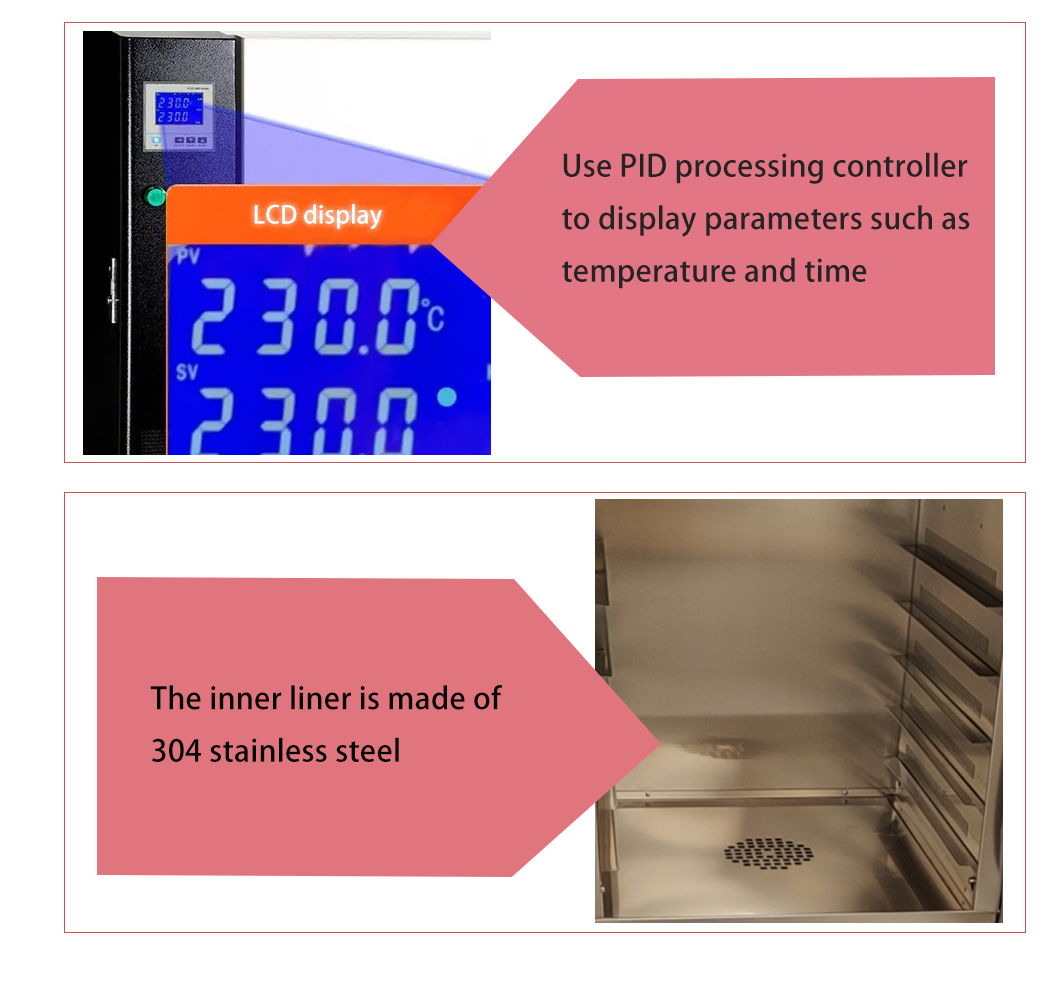

The LCD color display screen shows various set parameters and measured parameters.
The new - type synthetic silicon sealing strip can operate continuously at high temperatures, has a long service life, and is easy to replace.
The hot - air circulation system is composed of a fan that can operate continuously at high temperatures and a suitable air duct, improving the temperature uniformity in the working chamber.
The loading brackets in the box can be adjusted freely.
5. Introduction to the control system:
Adopt a microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display. It has a timing function, and the temperature control is stable and reliable.
The upgraded microcomputer chip with audible and visual alarm and environmental scanning has a stable data processing function.
Functions such as over-temperature alarm, timed shutdown, power recovery, parameter encryption, and temperature correction are available.
It has a power-off recovery function. After the external power supply suddenly fails and then resumes, the equipment can automatically resume operation according to the original set program.
6. Safety functions:
Considerate safety protection design to achieve triple safety protection for personnel, samples and equipment.
Safety functions: sensor failure alarm, over-temperature alarm, separate overshoot preventer, separate over-temperature protector, over-current trip protection, etc.
7.Technical parameter
|
product name |
High temperature drying oven |
|||
|
product model |
DHG-9038A(42L) |
DHG-9078A(72L) |
DHG-9148A(140L) |
DHG-9248A(240L) |
|
Inner size (D*W*H) mm |
350*350*350 |
400*400*450 |
500*500*550 |
580*600*600 |
|
External Size (D*W*H) mm |
510*780*730 |
570*830*830 |
670*925*980 |
760*1025*1035 |
|
power (W) |
2000W |
3000W |
4000W |
6000W |
|
volume (L) |
42L |
72L |
140L |
240L |
|
temperature range |
RT+50～400℃ |
|||
|
temperature resolution |
0.1℃ |
|||
|
temperature fluctuation |
±1℃ |
|||
|
operating ambient temperature |
5℃～40℃ |
|||
|
Timing range |
1 to 9999 hours |
|||
|
display mode |
The color screen is displayed in liquid crystal |
|||
|
Carrying frame (block) |
2 |
|||
|
supply voltage |
AC220V±10% 50HZ~60HZ |
|||
|
apolegamy |
Curve heating, printer, RS485, interface, mobile phone remote control and other ancillary options |
|||
|
net weight (kg) |
40kg |
50kg |
68kg |
75kg |
|
rough weight (kg) |
51kg |
65kg |
80kg |
110kg |
|
product name |
High temperature drying oven |
|||
|
product model |
DHG-9408A(400L) |
DHG-9648A(640L) |
DHG-9808A(800L) |
DHG-91008A(1000L) |
|
Inner cavity size (D*W*H) mm |
640*700*900 |
800*800*1000 |
1000*800*1000 |
1000*1000*1000 |
|
Size (D*W*H) mm |
870*1120*1280 |
950*1210*1400 |
1410*940*1400 |
1410*1140*1400 |
|
power (W) |
8000W |
10KW |
12KW |
15KW |
|
volume (L) |
400L |
640L |
800L |
1000L |
|
temperature range |
100~500℃ (it is recommended to use 400℃ or less for long-term use) |
|||
|
temperature resolution |
0.1℃ |
|||
|
temperature fluctuation |
±1℃ |
|||
|
operating ambient temperature |
5℃～40℃ |
|||
|
Timing range |
1 to 9999 hours |
|||
|
display mode |
The color screen is displayed in liquid crystal |
|||
|
Carrying frame (block) |
3～4 |
|||
|
supply voltage |
AC380V±10% 50HZ~60HZ |
|||
|
apolegamy |
Curve heating, printer, RS485, interface, mobile phone remote control and other ancillary options |
|||
|
net weight (kg) |
40kg |
50kg |
68kg |
75kg |
|
rough weight (kg) |
51kg |
65kg |
80kg |
110kg |
